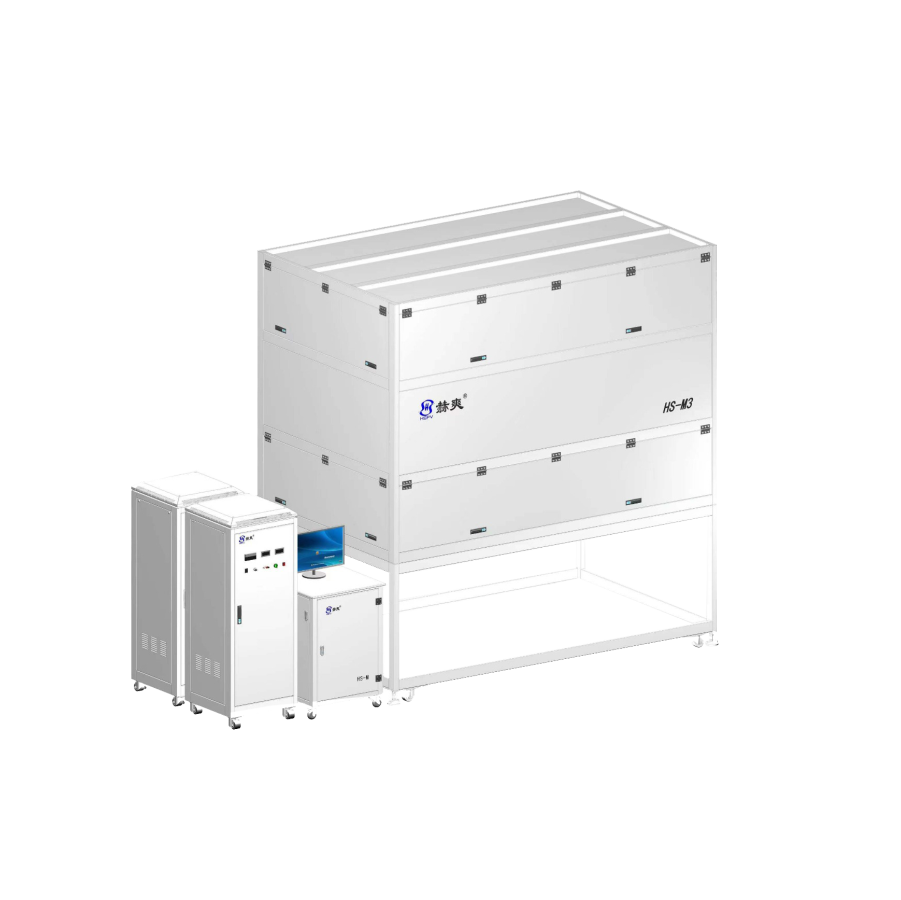

HSPV – Sun Simulator / IV Tester
SOLAR SUN SIMULATOR/IV TESTER
| Item | Specification | |
|---|---|---|
| Grade | A+A+A+ according to IEC 60904-9:22020 | |
| General | Range of Use | Crystalline/Half cell module /Glass to glass module, center 3 Jbox module PERC/ N type Module Testing |
| Effective Area | 1400mm*2600mm | |
| Optical Parameters | Light Source Type | High Voltage Xenon Lamp |
| Light Direction | Vertical from Above (Top Flash) | |
| Spectrum Grade | AM 1.5 G Class A+ (0.875-1.125) | |
| Spectrum Distribution | 300nm-1200nm | |
| Xenon Arc Lamp Lifetime | 100,000 Flashes (With Pre-flash function) | |
| Light Intensity Range | 700-1200 W/m2 | |
| Pulse Duration | 100ms |
