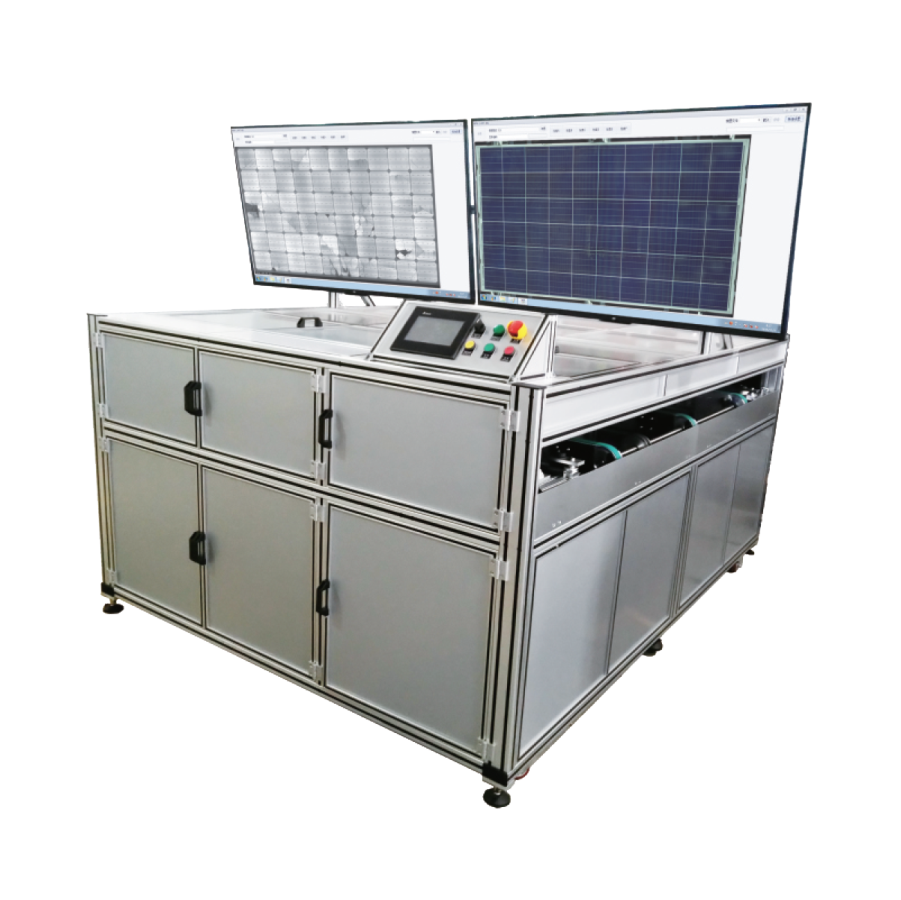

INLINE SOLAR PANEL EL/BVI SCANNER
FUNDAMENTAL DESCRIPTION
Capture Type:
Automation Mode, direct capture type
Applications:
Camera Q'ty:
Quadruple camera for EL testing Quadruple camera for front VI testing Quadruple camera for rear VI testing
Camera Resolution:
2,720*1836*4*3 pixels for EL testing (5.0M) 4,000 3,000*4*3 pixels for VI testing (12M) 4,000 3,000 4 3 pixels for VI testing (12M) Trans funtion: Length-side on front
Panel Size included:
1. 12BB(round wire) PERC cells, both gap & gapless (tiling)+main, half-cut, both mono & bi-facial(with transparent + white patterned backsheet), only framed & glass to backsheet configuration 2. Cell size(to be applied): M10, M12 3. Module size: L1600-2400mm x W950-1200mm x T30-40mm 4. Gapless (tiling, switchable to normal gap type when it’s required) & half-cut technology
Conveyor height:
950+30mm
Footprint:
W2700mm* L2900mm
Facility Inquiry:
AC 220V 50Hz (240V option) 3KW, CDA (0.6Mpa, M10)
Cycle time:
<25s/pcs (excluding defect judgemet)
Transportation sample size:
Length: 2000-2500mm; Width: 1000-1500mm

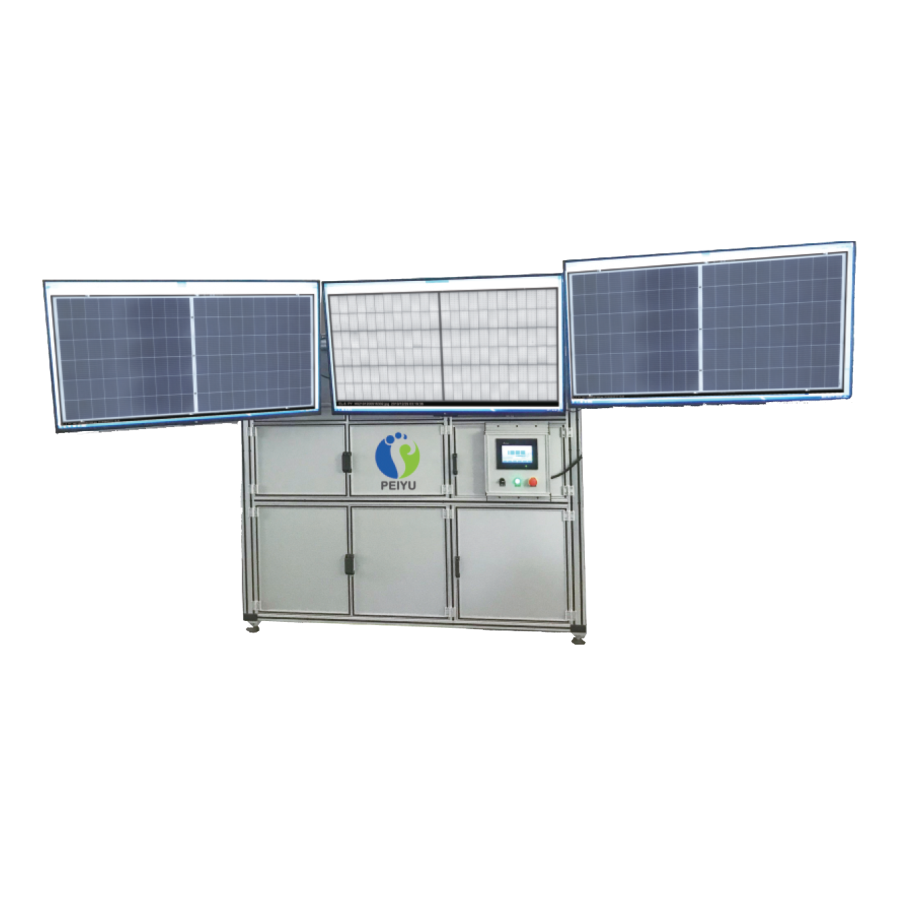

INLINE SOLAR PANEL ELVI SCANNER
FUNDAMENTAL DESCRIPTION
Applications:
Solar Panel pre-lamination
Camera Qty:
Quadruple camera for EL testing Quadruple camera for VI testing
Camera Resolution:
2,720*1836* 4*3 pixels for EL testing (5M) 4,000*3,000*4*3 pixels for VI testing (12M)
Trans funtion:
Length-side on front
Panel Size included:
166*83 mm/12* 6 pcs; 166*83mm/10*6 pcs; 182*91 mm/24* 6pcs; 182*91 mm/20* 6pcs; Up to 2500* 1500mm solar panel
Conveyor height:
950130mm
Footprint:
W2900mm * L2800mm
Facility Inquiry:
AC 220V 50Hz (240V option), CDA (0.6Mpa, M10)
Cycle time:
< 22s/pcs (excluding defect judgemet)
Optical system:
Quadruple EL Camera system for EL Quadruple EL Camera system for VI
Transportation sample size:
Length: 1700~2500mm; Width: 1000 ~ 1500mm

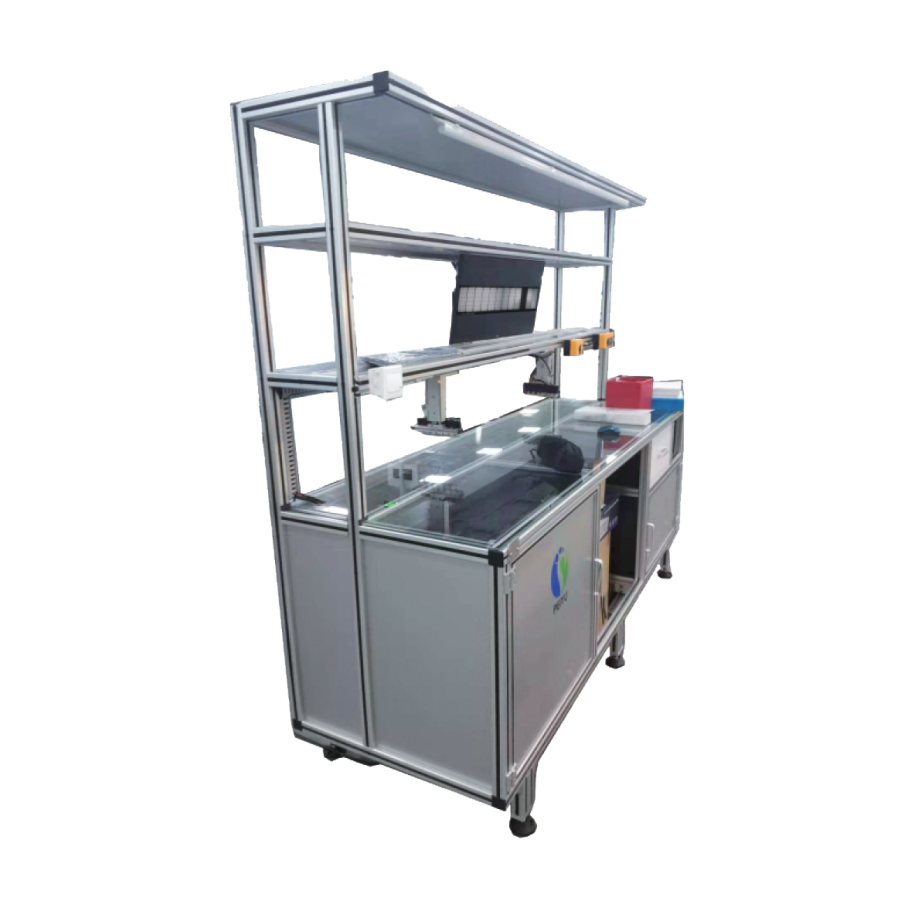

OFFLINE SOLAR STRING TESTING & REPAIR STATION
FUNDAMENTAL DESCRIPTION
Capture Type:
Automation Mode, direct capture type
Applications:
Camera Q'ty:
Quadruple camera for EL testing Quadruple camera for front VI testing Quadruple camera for rear VI testing
Camera Resolution:
2,720*1836*4*3 pixels for EL testing (5.0M) 4,000 3,000*4*3 pixels for VI testing (12M) 4,000 3,000 4 3 pixels for VI testing (12M) Trans funtion: Length-side on front
Panel Size included:
1. 12BB(round wire) PERC cells, both gap & gapless (tiling)+main, half-cut, both mono & bi-facial(with transparent + white patterned backsheet), only framed & glass to backsheet configuration 2. Cell size(to be applied): M10, M12 3. Module size: L1600-2400mm x W950-1200mm x T30-40mm 4. Gapless (tiling, switchable to normal gap type when it’s required) & half-cut technology
Conveyor height:
950+30mm
Footprint:
W2700mm* L2900mm
Facility Inquiry:
AC 220V 50Hz (240V option) 3KW, CDA (0.6Mpa, M10)
Cycle time:
<25s/pcs (excluding defect judgemet)
Transportation sample size:
Length: 2000-2500mm; Width: 1000-1500mm
