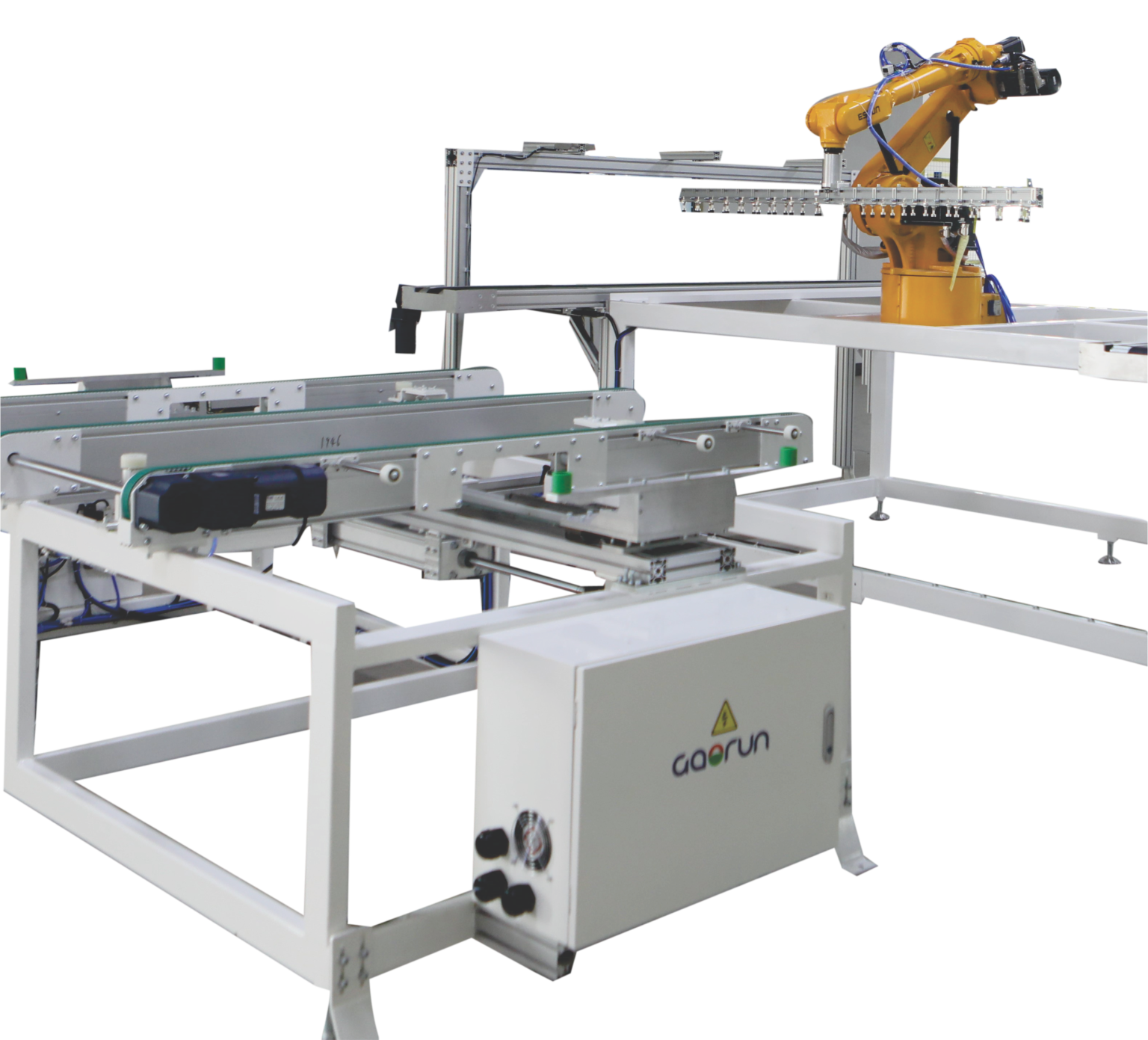

Robotic Layup

Robotic Layup

Function Introduction

The string-welded battery is automatically laid by the robot

  • Applicable components: conventional, half sheet and double glass components in length 1640-2600mm & width 950-1500mm
  • Working beat: 5 seconds/string
  • Rated power (KW): 6KW
  • Pressure (MPa): 0.6-0.8MPa
  • Online operator: 0
  • Gas consumption (L/min): 60 L/min
  • Interface specification: 12
  • Overall dimension (length, X, width, X, height): 3,380 mmx3120mmx1800mm weight: 2000kg
  • The battery adopts CCD visual positioning, which has the advantages of high accuracy and stability;
  • The equipment can automatically receive, automatically layout and automatically export components, and layout is accurate positioning;
  • The suction cup is made of imported silicone material, which will not leave a mark on the surface of the battery;
  • Adopt six-axis robot typesetting, with the advantages of fast movement speed, high flexibility, high flexibility, high repeated positioning accuracy and stable performance, saving the overall beat time;
  • Long and short edge change adjustment adopts quick locking mechanism, adjustment quickly, simple, convenient and reliable;
