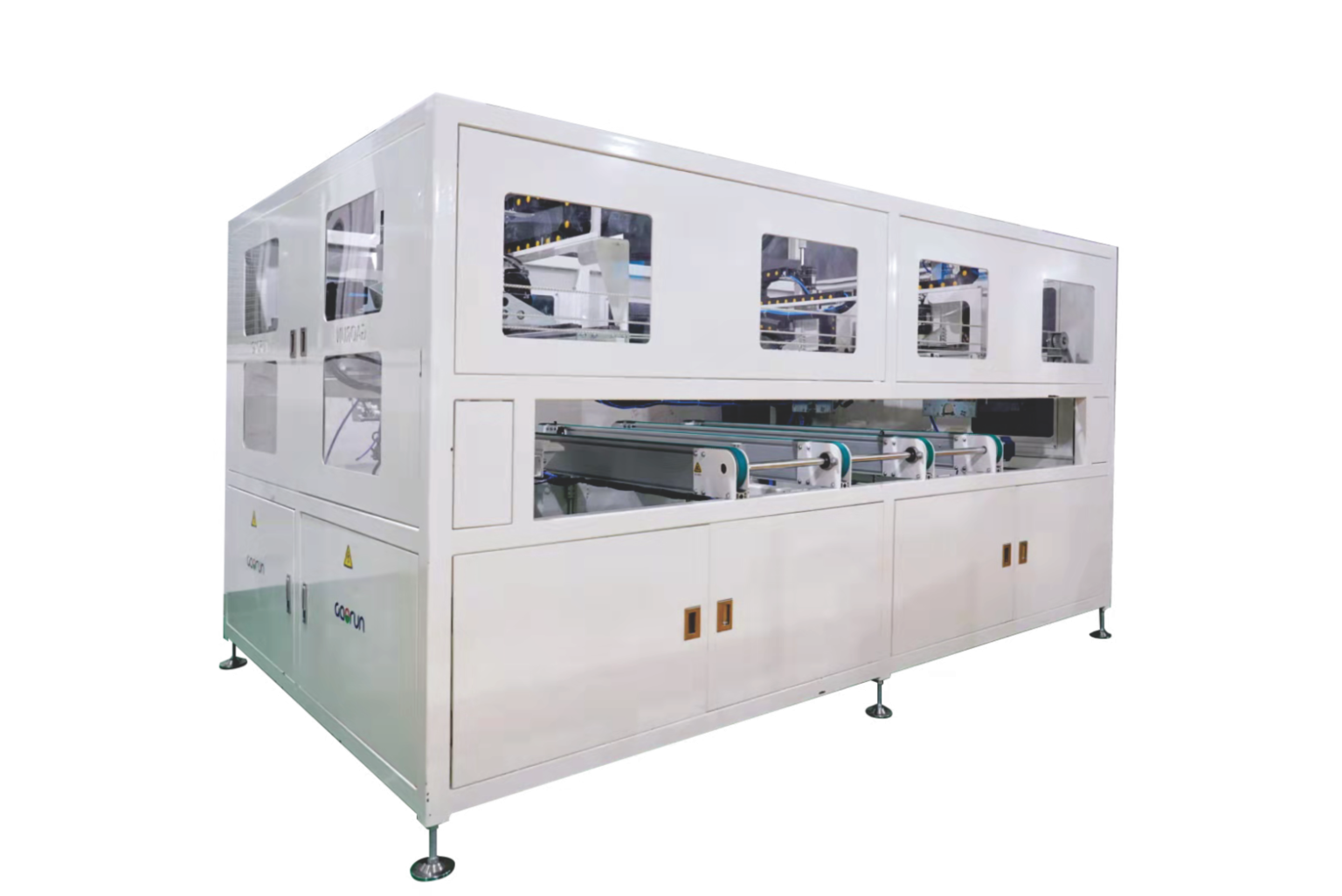

Inline Hipot

Inline Hipot

Function Introduction

Store standard component versions for automatic
calibration of IV testing.

  • Applicable component specifications: conventional, half sheet and double glass components in length 1640-2600mm & width 950-1500mm
  • Working beat: 22 seconds
  • Maximum production capacity: 3,400 pcs/day
  • Online operator: 0
  • Weight: approximately 1100 KG
  • Rated power (KW): 2KW
  • Pressure (MPa): 0.6-0.8MPa
  • Gas consumption (L/min): 3.8L/min
  • Interface specification: 12
  • Noise (dBA): <72db
  • Overall dimension (length, X, width, X, height): 3,150 mmx1800mmx-1850mm
  • Choose servo motor for high transfer accuracy and stable transmission performance;
  • Advanced design principles and processing methods to ensure the reliability of the whole machine operation;
  • Automatic whole-process control to avoid personnel interven- tion and high production efficiency;
  • The whole machine is equipped with a safety fence, which has the safety protection function;
  • Computer programming and control, highly intelligent, simple and easy to operate;
  • Convenient installation, energy saving and environmental protection, easy to maintain, and low price;
