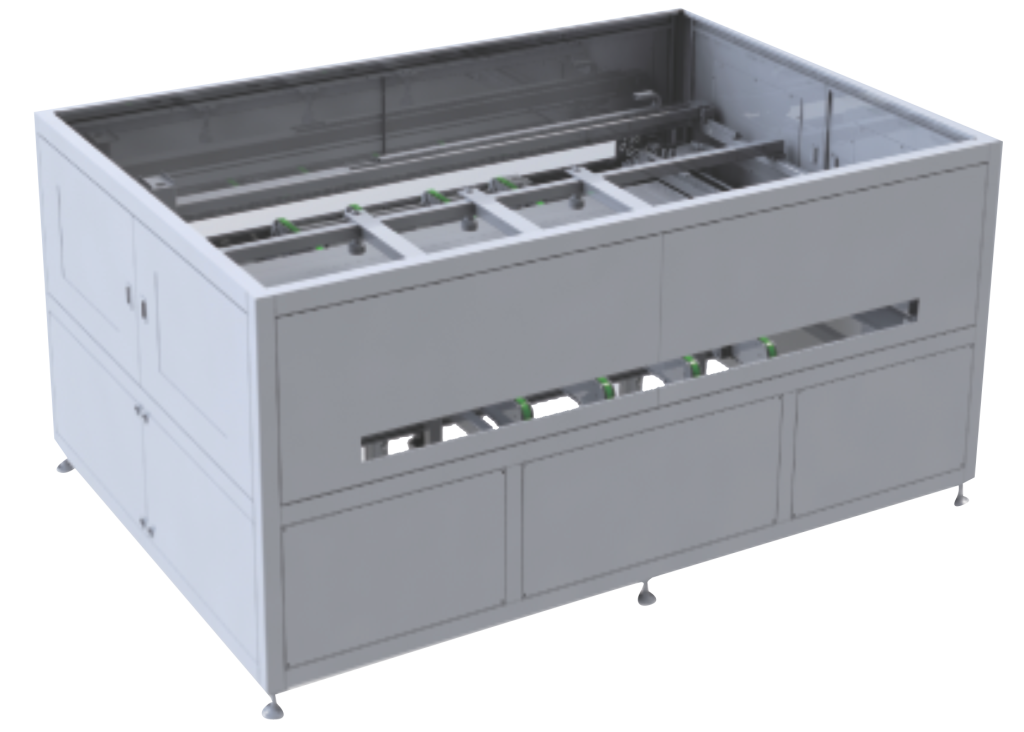

Edge Bonding Machine

Edge Bonding Machine

Function Introduction

High temperature tape is used to seal the four sides of
the double glass assembly before lamination

  • Applicable components: conventional, half sheet and double glass components in length 1640-2600mm & width 950-1500mm
  • Working beat: 22 seconds
  • Maximum production capacity: 3,400 pcs/day
  • Online operator: 0 people
  • Rated power: 2KW
  • Gas consumption: 60 L/min
  • Pressure: 0.6-0.8MPa
  • Interface specification: 12
  • Overall dimension (length, X, width, X, height): 3,660 mm X 2500mm X 1650mm
  • weight: 1800KG
  • Choose servo motor for high displacement accuracy and stability,
  • The equipment includes the assembly leveling and fixing mechanism, with a total of 16 suction cups leveling out the components;
  • The 16 suction cups are made of imported silicone material, and the equipment will not leave a mark on the surface of the compo- nent when working;
  • The suction cup is designed as an integral integrated type, adjusted quickly, simple, convenient and reliable;
  • The equipment completes the automatic operation without manual operation.
  • Long and short edge change adjustment adopts quick locking mechanism, adjustment quickly, simple, convenient and reliable;
