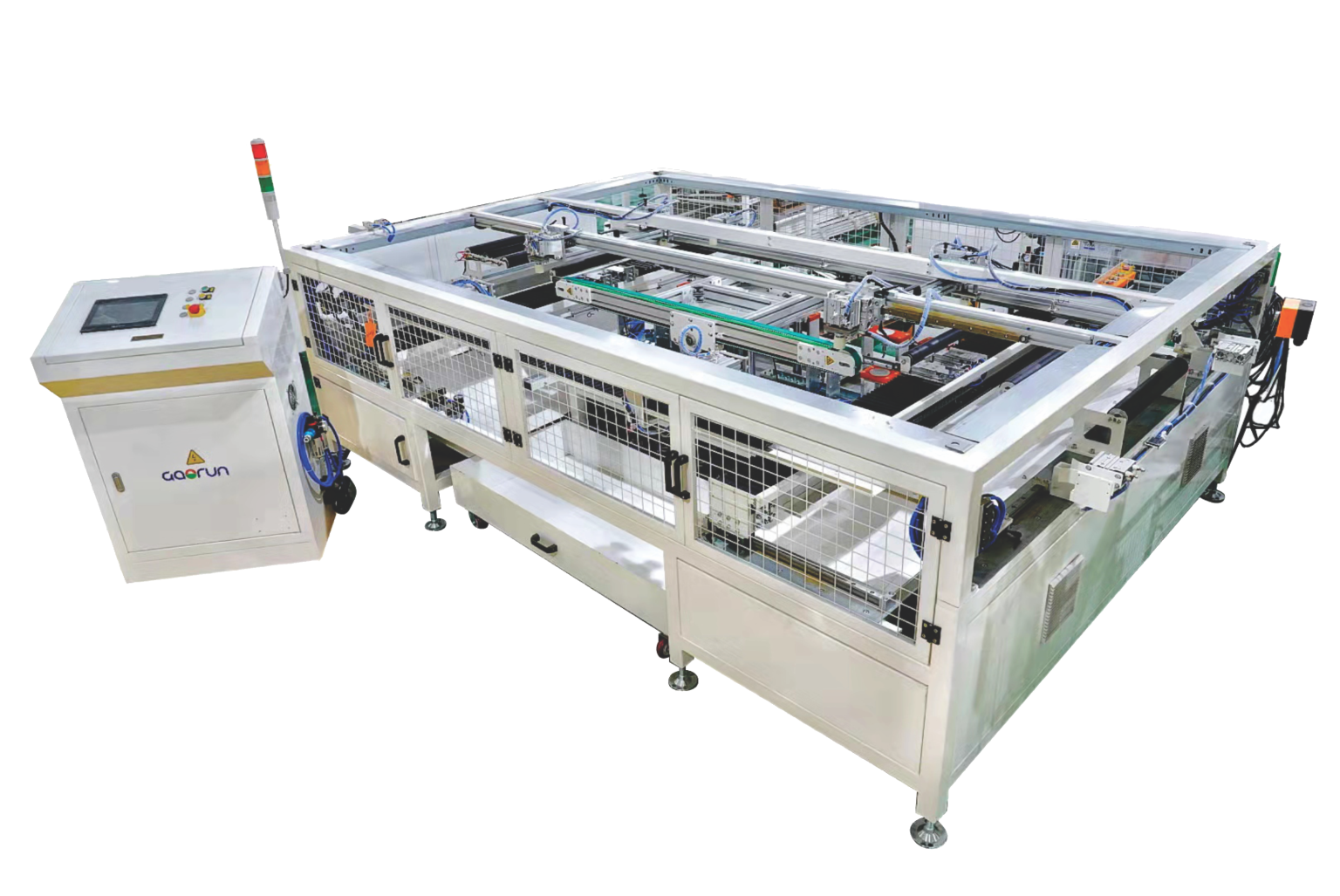

AUTO TRIMMING

AUTO TRIMMING

Function Introduction

Cut the excess backplane and EVA around the laminated assembly

  • Applicable components: conventional, half sheet and double glass components of length 1640-2600mm & width 950-1500mm
  • Working beat: 22 seconds
  • Maximum production capacity: 3,400 pcs/day
  • Online operator: No
  • Weight: approximately 2150kg
  • Rated power (KW): 2KW
  • Pressure (MPa): 0.6-0.8MPa
  • Interface specification: 12
  • Noise (dBA): <72db
  • Overall dimension (length, X, width, X, height): 3,520 mmx2240mmx1200mm
  • The equipment is driven by a servo motor, which has the advantages of accurate precision and smooth operation;
  • The whole machine is equipped with a safety fence, which has the safety protection function;
  • Automatic control of the equipment, and the operation process does not require personnel intervention;
  • When working, the four sides of the component are cut at the same time, which has the advantages of high efficiency and stability,
  • Set up the guide device to prevent the waste material from splashing;
  • The blade adopts circular arc edge, cut clean, and uses the blade back edge to effectively remove the residual material of the component;
  • Easy to replace the blade;
